• Port connection thread sizes from 3/8” to 5”
• Rotors available with thread or flange connection
• Single or two passage designs
• Dual bearing models available for extended service life
• Steam pressure ratings up to 250 PSI
• Hot oil pressure ratings up to 100 PSI
• Temperature ratings up to 400°F steam, 450°F hot oil
• Speed ratings up to 750 RPM
• Models with seal wear indicator available for preventative maintenance

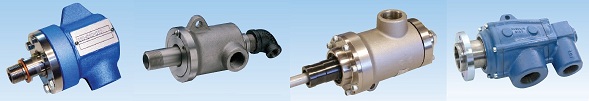

DEUBLIN
N Series Steam and Hot Oil Unions

Monoflow design: N10
Monoflow and duoflow design: N12
Self-supported rotating union
Large carbon graphite bearing
Pressurized spherical carbon graphite seal
Cast iron housing
Stainless steel rotor

DEUBLIN
9000 Series Steam and Hot Oil Unions

Monoflow and duoflow design
Self-supported rotating union
Spherical Carbon Graphite seal
Seal wear indicator allows preventive maintenance
2 torque lugs on the housing
Nickel-plated cast iron housing
Steel rotor, nickel-plated for steam service

DEUBLIN
HPS Series for High Pressure Steam Service in Corrugators

Monoflow and duoflow design
Self-supported rotating union
Seals and bearings made of special Carbon Graphite
Convex seal ring better suited to handle mechanical and thermal shock
External mechanism to adjust siphon pipe through end cap
Nickel-plated front and rear end cap
Nickel-plated ductile iron housing
Stainless steel spring
Heavy duty steel rotor design
Dual bearings for extended service life

DEUBLIN
H Series Steam and Hot Oil Unions

Monoflow and duoflow design
Self-supported rotating union
Convex seal ring better suited to handle mechanical and thermal shock
Two widely-spaced graphite bearings
H57 - H127 optional with sight glasses in the end cap for visual inspection of condensate removal
Seal wear indicator allows preventive maintenance
Flanged or threaded rotor available
Cast iron housing
Stainless steel rotor
For steam and hot oil applications in paper, plastic and textile industries and open gear paper machines
